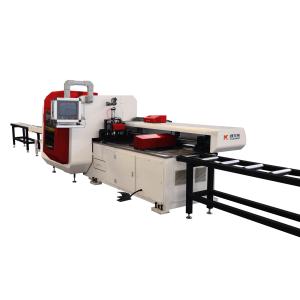

Completely automatic copper aluminum bus bar processing machine for
shearing bendin punching
This series of CNC busbar punching and shearing line is a kind of
automatic feeding, automatic positioning, automatic clamping,
automatic punching, automatic cutting, automatic embossing,
automatic mold replacement and automatic delivery.
Application of busbar processing machine
This processor is suitable for making large electric cabinet ,
power distribution cabinets ,switch cabinets and power transmission
and distribution construction engineering construction site
use.Suitable for transmission and distribution in a large workshop
and site work, construction, and power distribution cabinets and
switch cabinets, etc.
Function introduction of busbar processing machine
By busbar conductor multifunctional processing machine, operator
will input values such as length, width, piler position, quantity
and etc. to initiate automatic working procedures including ends
punching, piler opening, piler punching and etc..
Equipment data on busbar conductor multifunctional processing
machine
| No. | Parameters |
| Model | KD-DTYTJ-C/A-4.5(6) |
Force (KN) | Bend | 400 |
| Punch | 300 |
| Piler Head | 300 |
| Stroke of X Axis | 1800mm |
| Speed of X Axis | 0~150mm/s |
| Marking | Barcode, QR code (optional) |
Conductor Size (Aluminum, Copper) | Length | 1200mm~6000mm |
| Width | 140mm~300mm |
| Thickness | 2mm~6mm |
| Positioning Accuracy | 0.2mm |
| Repetitive Positioning Accuracy | 0.05mm |
| Saw Blade Power | 2kW |
| Saw Blade Diameter | 400mm |
| Max. Bending Width | 300mm |
| Max. Bending Height Difference | 40mm |
| Max. Hydraulic Force | 31.5MPa |
| Power | 380~415VAC 50~60Hz 10kW |
